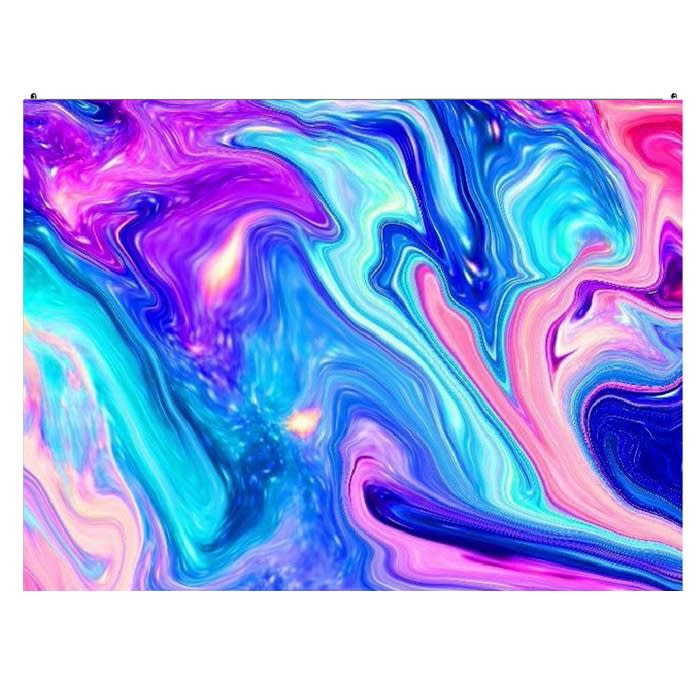

Planet Super High Brightness (10k nits) Super Slim Wireless LED Module with 10mm SMD LED - 960 x 1280 Cabinet

Wireless Module Technology for Fast, Secure Installation

The Ovideon PLANET LED introduces a cable-free installationprocess with its advanced wireless module technology. Each module seamlesslyconnects to the next, transmitting power and data without the need for physicalwiring, significantly reducing installation time and complexity.

This wireless architecture not only simplifies setup butalso enhances long-term reliability by eliminating the risk of loose or faultycable connections. Whether used for building facades, digital billboards, orcustom-designed outdoor displays, the PLANET LED ensures a smooth anduninterrupted display experience.

Multiple Panel Sizes for Any Application

The PLANET LED is available in 4 panel sizes, allowing for versatile configurations based on installation requirements:

• PL1: 960mm x 640mm x 75mm (37.8” x 25.2” x 2.95”)
• PL2: 960mm x 960mm x 75mm (37.8” x 37.8” x 2.95”)
• PL3: 1,280mm x 960mm x 75mm (50.39” x 37.8” x 2.95”)
• PL4: 1,440mm x 1,280mm x 75mm (56.69” x 50.39” x 2.95”)

These modular panels can be arranged in customconfigurations to create everything from standard billboards to massive digitalwalls, ensuring maximum impact for any outdoor environment.

Vibrant Display with Multiple Pitch Options

The Ovideon PLANET LED supports a range of pixel pitchoptions to provide the perfect balance between resolution and viewing distance.Available in P4.44mm, P5mm, P5.7mm, P6.67mm, P8mm, and P10mm, this varietyallows businesses to tailor their display resolution to match their audience'sviewing distance.

For close-up digital signage, finer pitch sizes providesharp, detailed visuals, while larger pitch options cater to long-rangeviewing, such as stadium screens, outdoor billboards, and large-formatadvertising.

Ultra-High Brightness for Maximum Visibility

With brightness levels of 6,000 nits and 10,000 nits, theOvideon PLANET LED ensures crystal-clear visibility, even in direct sunlight.This high brightness capability makes it the perfect solution for outdoorapplications where ambient lighting conditions vary.

Whether installed on a skyscraper, along a highway, or in anopen-air stadium, the high-luminance LEDs guarantee vivid colors and sharpcontrast, maintaining image clarity at any time of day.

Super Lightweight and Ultra-Slim Design

Each 960mm x 960mm cabinet weighs only 25kg, making thePLANET LED one of the lightest large-scale outdoor LED displays available. Itssuper-slim 75mm (2.95”) thickness reduces the structural burden on mountingsurfaces, making it easier to install and requiring less reinforcement.

This lightweight yet durable design also helps cut down oninstallation labor costs, making it an efficient and cost-effective solutionfor large-scale digital signage projects.

Flexible Screen Configurations for Any Design

The Ovideon PLANET LED is not limited to flat screens. It isengineered to support multiple display shapes, including flat panels,edge-seamless designs, and smooth curved screens. This level of adaptabilitymakes it a great choice for architectural integration, immersive outdoorinstallations, and artistic LED displays.

Whether used for classic billboard designs or wrapped arounda curved structure, the PLANET LED delivers a continuous, visually stunningpresentation that grabs attention and enhances brand visibility.

Seamless Display with Precision Stitching

Designed for infinite scalability, the PLANET LED featuresseam adjustment accuracy of 0.01mm, ensuring a truly seamless viewingexperience. This precision engineering eliminates gaps and misalignment,creating a smooth, uninterrupted digital canvas for high-quality advertisingand entertainment.

High Refresh Rate and True-to-Life Colors

Featuring a 3840Hz refresh rate, a 16-bit grayscale, and awide color gamut, the Ovideon PLANET LED ensures that videos, animations, andimages appear smooth, vibrant, and natural. This high refresh rate eliminatesghosting and tailing effects, making it an excellent choice for digitaladvertisements, live sports broadcasts, and real-time event streaming.

Weatherproof Protection for Long-Term Outdoor Performance

Built to withstand harsh environmental conditions, theOvideon PLANET LED features IP67/IP68-rated protection against rain, dust,humidity, and extreme temperatures. The rugged waterproof and dustproof designensures long-lasting durability, making it an ideal solution for permanentoutdoor installations.

This high-level ingress protection guarantees continuedperformance, even in stormy weather or high-moisture environments, reducingdowntime and maintenance costs for businesses and operators.

Optimized for Building Facades and Billboards

The PLANET LED is specifically designed with a reinforcedcabinet structure, making it perfect for facade wall mounting and billboardfoot installations. This allows for quick, safe, and secure placement oncommercial buildings, high-rise structures, and large advertising spaces.

Its structural efficiency enables large-format screens to beinstalled faster and with minimal support infrastructure, ensuring fasterproject completion and lower installation expenses.

Easy Front and Rear Service Access

Maintenance and servicing are simple with the PLANET LED'sdual front and rear service access. This design allows technicians to quicklyaccess and replace modules, reducing downtime and service interruptions.Whether for routine maintenance or emergency repairs, the PLANET LED ensuresfast and hassle-free servicing.

Energy-Efficient Heat Dissipation

The aluminum module chassis ensures efficient heatdissipation, preventing overheating and ensuring stable, long-term performance,even in high-temperature environments. The energy-saving LED technology reducesoverall power consumption, making the PLANET LED an environmentally friendlysolution for large-scale outdoor displays.

Designed for a Wide Range of Applications

The Ovideon PLANET LED is engineered to meet the diverseneeds of multiple industries. Its exceptional brightness, high-resolutiondisplay, and scalable design make it an excellent choice for:

• Building facades – Transform commercial spaces into eye-catching digital landmarks.
• Digital billboards – Deliver high-impact advertising in high-traffic areas.
• Retail signboards – Enhance brand visibility and customer engagement.
• Sports stadiums – Broadcast live sports, sponsorship ads, and game updates.
• Concerts and outdoor events – Provide large-scale event visuals and promotions.

The Ultimate Outdoor LED Display Solution

The Ovideon PLANET LED represents the future of outdoordigital signage, combining state-of-the-art wireless module technology,ultra-high brightness, and durable all-weather construction. Whether installedon skyscrapers, along highways, or in public venues, it ensures stunning,high-definition visuals that engage audiences and enhance brand presence.

With its cutting-edge display technology, flexibleconfigurations, and seamless maintenance, the PLANET LED is the go-to solutionfor businesses, advertisers, and event organizers looking to make a lastingimpact.
