Modular& Scalable Architecture

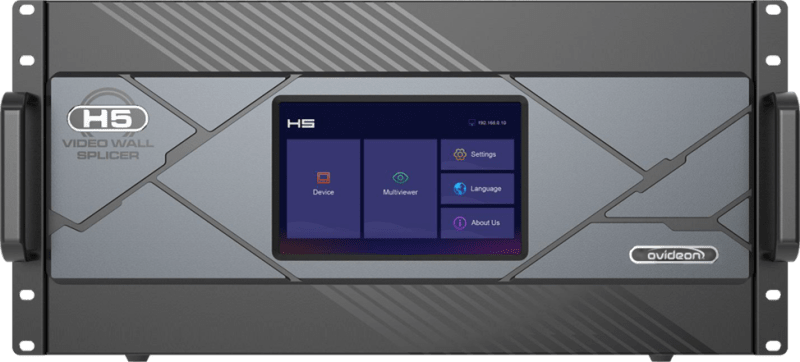

The H5 uses a fully modular chassis design with up to 4 input and 2 output cardslots. Each card supports hot-swapping for fast maintenance or system expansionwithout power-down, ideal for 24/7 mission-critical operations.
High PixelLoading Capacity
Equipped with LED 4K or fiber output cards, the H5 supports up to 26 million or41.6 million pixels respectively. This makes it suitable for massive LED wallswith high-resolution demands in both wide and tall configurations.
MultipleVideo Signal Inputs
The H5 supports HDMI, DVI, DP, VGA, CVBS, SDI, and IP signal input formats,providing compatibility with a broad range of professional AV devices. Ithandles 10-bit video sources and supports 4K UHD resolutions with precisioncolor accuracy.
• Multi-Layer& Multi-Screen Composition
Up to 32 independent video layers can be assigned across multiple screens orcombined within a single display for rich, dynamic content arrangements. Layersare easily managed and reordered using V-Can control software or the built-inweb interface.
RedundantOutput and Transmission
Supports both fiber and Ethernet output options with automatic backup andfailover switching, enabling uninterrupted display operation in criticalenvironments or when using long-distance cabling.
Cross-PlatformWeb-Based Control (B/S Architecture)
The H5 can be accessed and configured from any modern operating systemincluding Windows, macOS, iOS, Android, and Linux through a web browser. Nosoftware installation is required. Multiple users can manage the systemcollaboratively in real time.
AdvancedEDID & Image Settings
Input and output EDID management allows optimal signal configuration. The H5also supports OSD (on-screen display), custom image backgrounds (BKG), andsource renaming, giving users a complete toolbox for managing the displayecosystem.
Firmware& Software Updates
Easy-to-execute firmware updates are supported over PC, ensuring the H5 remainsup-to-date with the latest feature sets and performance enhancements.
Benefits
Professional-GradeImage Processing
The H5’s 10-bit color depth, high refresh rate support, and multi-layercapability result in vibrant, fluid imagery that enhances fine-pitch LEDperformance. This makes it ideal for content-critical applications where visualaccuracy is paramount.
Custom-TailoredFlexibility
From command centers to performance venues, the H5 can be adapted to differentworkflows and display environments through its customizable input/outputconfiguration and signal compatibility.
OperationalRedundancy and Stability
Designed for continuous operation in environments where downtime is not anoption, the H5 features redundant power supplies, output backups, andhot-swappable cards for maximum uptime.
StreamlinedSetup and Maintenance
Thanks to intuitive controls, V-Can software, and browser-based access, systemsetup, diagnostics, and control can be managed easily and quickly—greatlyimproving response time and reducing the need for on-site technical expertise.
CollaborativeControl and Rapid Deployment
With browser-based control, teams can configure the H5 from multiple devicessimultaneously. Its modular design and scalable architecture make it ideal forgrowing installations or time-sensitive deployment scenarios.
ApplicationScenarios
Command andControl Centers
Ideal for military, public safety, transportation, and emergency operationscenters that require reliable multi-source monitoring with dynamic layoutcontrol and minimal delay.
Broadcastand Television Studios
Supports real-time processing for live production walls, newsrooms, andbehind-the-anchor backdrops, delivering accurate visuals with seamlessswitching and layer control.
CorporateHeadquarters and Data Centers
Used in boardrooms, NOCs, and SOCs to manage, display, and switch between livedata feeds, video conferencing, and corporate messaging.
Exhibitions,Museums, and Auditoriums
Powers large-scale display environments requiring rich multimedia integration,dynamic layering, and stunning 4K visuals across unique screen shapes andlayouts.
Live Eventsand Touring Shows
With its high pixel capacity and fiber output support, the H5 is perfect forhigh-resolution LED setups in concert venues, touring productions, and rentalapplications.
Financialand Industrial Monitoring
Deployed in banks, stock exchanges, manufacturing, and energy sectors forreal-time operational display of critical information across large video wallplatforms.
