• 4K Ultra HD Input & 8K Output: Supports 4K×2K@60Hzvideo input and drives screens up to 8K×1K@60Hz. Ideal for wide, curved, orhigh-resolution LED applications.
• Wide Input Compatibility: Includes 1 × DP 1.2, 1 × HDMI2.0 with loop-through, 4 × DVI, and 2 × 12G-SDI with loop-through forbroadcast-quality integration.
• 16 Ethernet + 4 Optical Outputs: Delivers up to 10,400,000pixels via 16 × Neutrik Ethernet ports and 4 × optical fiber outputs. Maximumwidth is 16K and height 8K.
• Multiple Display Layers: Offers 1 main layer (4K) and 2PIP layers (2K each), all with independently adjustable priorities and scalingoptions.
• DVI Mosaic Input: Allows up to four DVI sources to becombined into one logical input, ideal for creative configurations.
• HDR Image Output: Supports HDR content for richer colors,deeper contrast, and greater visual impact.
• Low Latency Performance: Achieves ultra-fast 2-frame delaywhen used with NovaStar A8/A9/A10s receiving cards.
• 3D Display Support: Enables stereoscopic 3D visuals(output capacity halved in 3D mode).
• Custom Image Scaling: Offers three output scalingmodes—pixel-to-pixel, full screen, and custom—to fit any screen layout.
• Preset Management: Store and recall up to 10 custompresets for quick transitions between display layouts and source settings.
• EDID Management: Fully supports both custom and standardEDID settings, ensuring optimal compatibility with connected devices.
• Input Image Capture: Captures live input images for use ascustom backgrounds (BKG) or quick-reference visual content.
• Multi-Device Linking: Supports up to 4 units connectedtogether for large-screen mosaic outputs using a video distributor.
• Seamless Software Integration: Works with NovaStar’s V-Cancontrol platform for remote display management and real-time adjustments.
• Visual Operation Interface: Simplified front panelcontrols and intelligent menu system streamline on-site setup and usage.
Ideal Applications
The NovaPRO UHD Jr. is built to support professional LEDdisplay systems across a wide range of environments where large-format visuals,low latency, and precision image management are essential:
• Live Stage and Event Production – Offers fullcontrol over high-resolution backdrops, stage screens, and live content withseamless video transitions and multi-layer support.
• Corporate and Government Presentations – Powerscrystal-clear, scalable visuals for boardrooms, training centers, conventionhalls, and broadcast control rooms.
• Exhibitions and Trade Shows – Enables quick setupand multi-source visuals for branded booths, keynote presentations, andimmersive product demos.
• Fine-Pitch LED Installations – Ideal forhigh-resolution, low-pitch displays where sharp visuals and low latency aremission-critical.
• Command and Control Centers – Offers reliabilityand flexibility to present layered, dynamic data feeds across large screenwalls.
• High-End Rental & Touring Events – Supportscomplex screen configurations and touring systems with smart presets andmulti-unit linking for simple re-deployment.
• Broadcast and Studios – Provides SDI loop-throughs,3D support, and ultra-low latency ideal for studio screens, on-air talentdisplays, and interactive content walls.

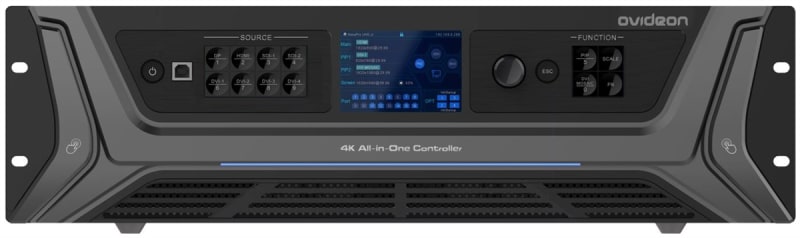

The NovaPro UHD Jr All-in-One Controller is a powerful,professional-grade solution for managing ultra-high-definition LED displaysystems. Combining advanced video processing, 4K/8K resolution support, andseamless multi-layer control in a single compact unit, it empowers users tocreate visually stunning presentations with ease. With a wide range of inputand output options, robust scaling and mosaic capabilities, and compatibilitywith NovaStar’s V-Can software, the NovaPro UHD Jr is ideal for large-scaleevents, stage productions, exhibitions, corporate venues, and fine-pitch LEDapplications. Whether used in rental staging or permanent installations, itdelivers the performance, flexibility, and reliability required in today’shigh-end visual environments.
