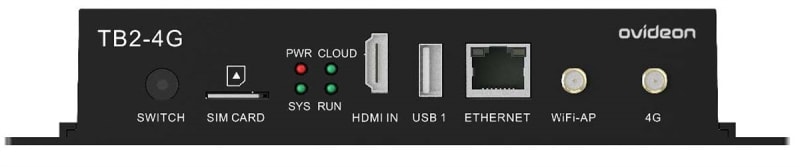

TB2 Taurus Multimedia Player Controller

The TB2-4G (Optional 4G) is the second generation ofmultimedia player launched by NovaStar for full-color LED displays. Thismultimedia player integrates playback and sending capabilities, allowing forsolution publishing and screen control via various user terminal devices suchas PCs, mobile phones, and tablets. The TB2-4G (Optional 4G) also supports thecloud publishing and monitoring platforms to easily enable cross-regionalcluster management of screens.

The TB2-4G (Optional 4G) supports both synchronous andasynchronous modes which can be switched anytime or as scheduled, satisfyingvarious playback demands. Multiple protection measures such as terminalauthentication and player verification are taken to keep the playback secure.

Thanks to its security, stability, ease of use, smartcontrol, etc., the TB2-4G (Optional 4G) widely applies to commercial displaysand smart cities such as lamp-post displays, chain store displays,advertisement players, mirror displays, retail store displays, door headdisplays, vehicle-mounted displays, and displays without requiring a PC.

Loading capacity up to 650,000 pixels with a maximumwidth of 1920 pixels and a maximum height of 1080 pixels

1x Gigabit Ethernet output

1x Stereo audio output

1x HDMI 1.3 input, accepting HDMI inputand allowing content to auto-fit to the screen

1x USB 2.0, capable of playing solutionsimported from a USB drive

1x USB Type B, capable of connecting toa PC Connecting this port to a PC allows users to configure screens, publishsolutions, etc. with NovaLCT and ViPlex Express.

Powerful processing capacity

− 4-core 1.2GHz processor

− Hardwaredecoding of 1080P videos

− 1 GB of RAM

− 32 GB ofinternal storage (28 GB available)

All-round control plans

− Solutionpublishing and screen control via user terminal devices such as PC, mobilephones and tablets

− Remotecluster solution publishing and screen control

− Remotecluster screen status monitoring

Synchronous and asynchronous modes

− When theinternal video source is used, the TB2-4G (Optional 4G) works in asynchronousmode.

− When theHDMI video source is used, the TB2-4G (Optional 4G) works in synchronous mode.

Permanent built-in Wi-Fi AP

User terminal devices can connect to the built-in Wi-Fihotspot of the TB2-4G (Optional 4G).

Support for 4G modules

− The TB2-4G(Optional 4G) ships without a 4G module. Users have to purchase 4G modulesseparately if needed.

− Wired network isbefore 4G network. When both networks are available, the TB2-4G (Optional 4G)will choose signals automatically according to the priority.
